Journeyman® Mobile Mix Plant
Journeyman® Mobile Mix Plant
Bergkamp Journeyman® Mobile Mix Plant
Meet the future of paving: The Bergkamp Journeyman® Mobile Mix Plant is designed to provide asphalt where it wouldn't otherwise be available. Engineered with the needs of contractors in mind, we’ve made it incredibly easy to transport and set up then use recycled asphalt or virgin aggregates to create an ambient asphalt mix. Position it at or close to the paving site to drive money-saving efficiency while contributing to sustainability goals. Once in place, the Journeyman facilitates the mixing of virgin aggregate or RAP materials with water, asphalt binder (emulsion) or hot asphalt cement, and more. Its pugmill blends all material streams with a high degree of accuracy and precision. Calibration is quick and intuitive when required.

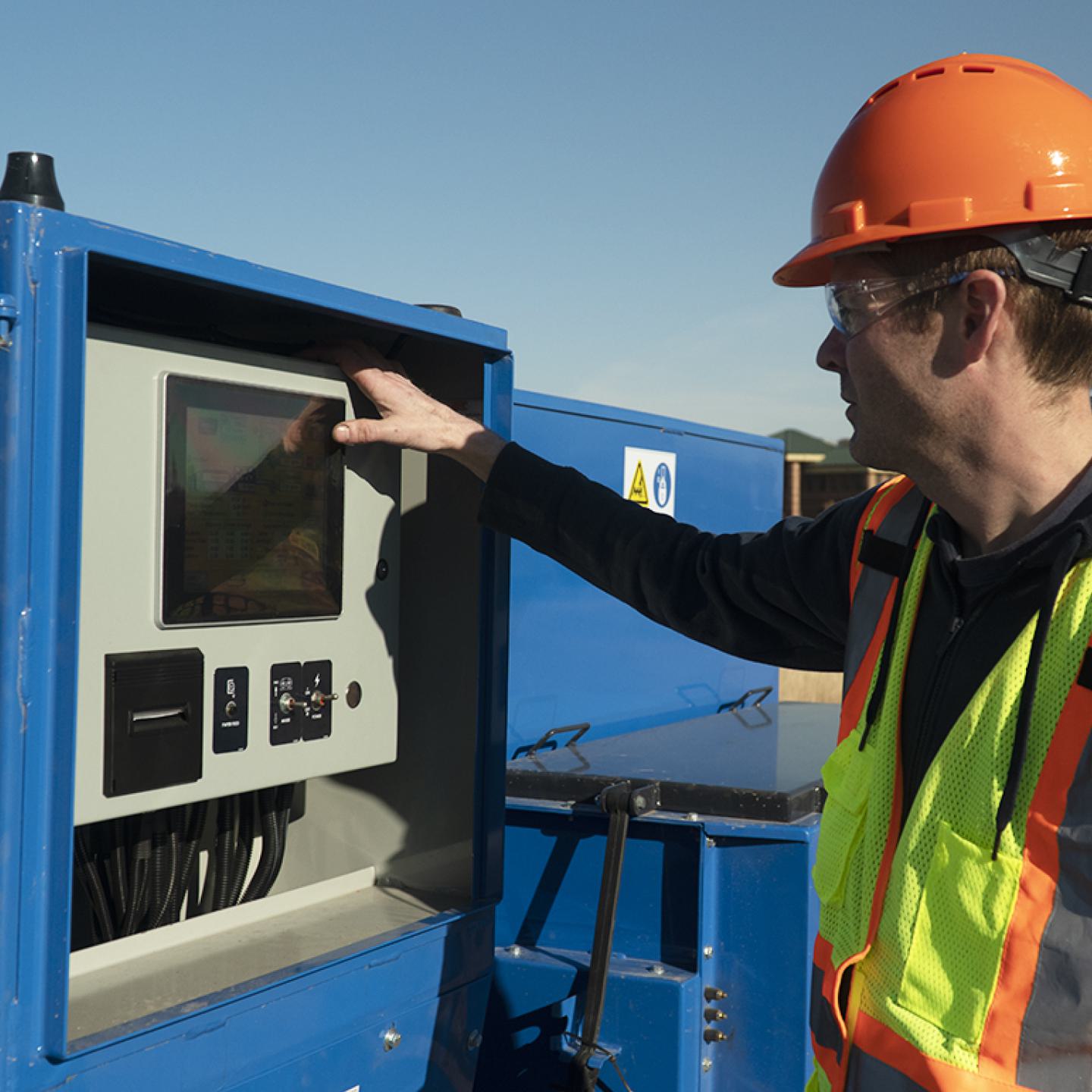

The Power of EMCADS Pro Control System
The Journeyman comes equipped with our proprietary EMCADS (Electronic Mix Control And Diagnostics System) Pro control system. With it, operators can follow the job mix formula with ease. This means aggregate, water, cement, and emulsion usage ratios are controlled and regulated automatically according to the mix design while also monitoring the performance of the entire mixing process. It also allows real-time online access to performance and GPS information of your plant. All told, EMCADS Pro helps produce a consistent mix and makes it easier for your operators.
EMCADS Pro Key Features
- Stores multiple material calibrations
- Daily production rates
- Current and average material ratios to match your precise mix
- An end-of-day printout of material usage
- Provides precise data on plant location
- Creates detailed reports you can print immediately or store for up to 90 days
- Allows remote connectivity with Bergkamp’s service team to reduce
downtime and save money - Easy diagnostics for troubleshooting electronics and hydraulics
Key Features
- 275 Tons Per Hour production rate (Nominal)
- 8' 7" aggregate hopper for ease of loading and visibility
- Tandem axle with air ride suspension for smooth travel
- Six hydraulic stabilizers with the ability to level the plant
- Weigh belt for gravimetric control of aggregate
- Catwalk provides access to pugmill in the raised position
- Twin shaft pugmill lowers for easier service and maintenance
- Simplified and shortened calibration process
- Onboard, Tier 4/Stage V-compliant engine
- Dual Emulsion and Water ports for ease of site setup
- Emulsion and water ports on both sides of plant for ease of site setup
- Standard Tool Cabinet and Storage
Optional Equipment
- Emulsion tank - 520 Gallons (1,968 L)
- Mineral Filler System - 1.5 Cubic Yard (1.15 m3)
- Remote Control allows the operator to run the plant remotely
- Secondary Catwalk for additional access
- Rear protective barrier to minimize material build up around rear axles and underneath the trailer
- Air Compressor can run additional tools or for cleaning
- 120 VAC inverter for small electronic devices
- Vibratory system to minimize bridging of materials in the hopper
- Emulsion Flush Reservoir
